number |
Product specifications |
|
size of product |
Product model: BXR-606 |
|

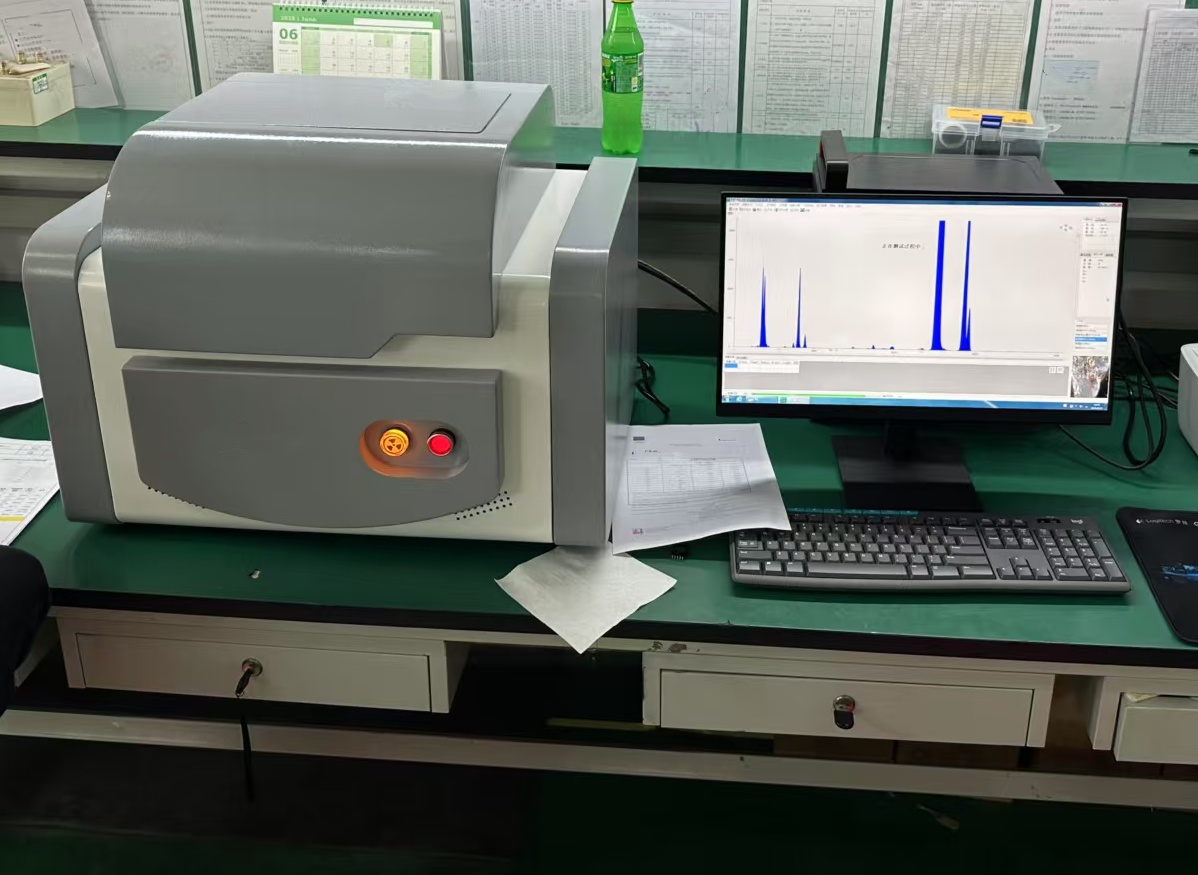

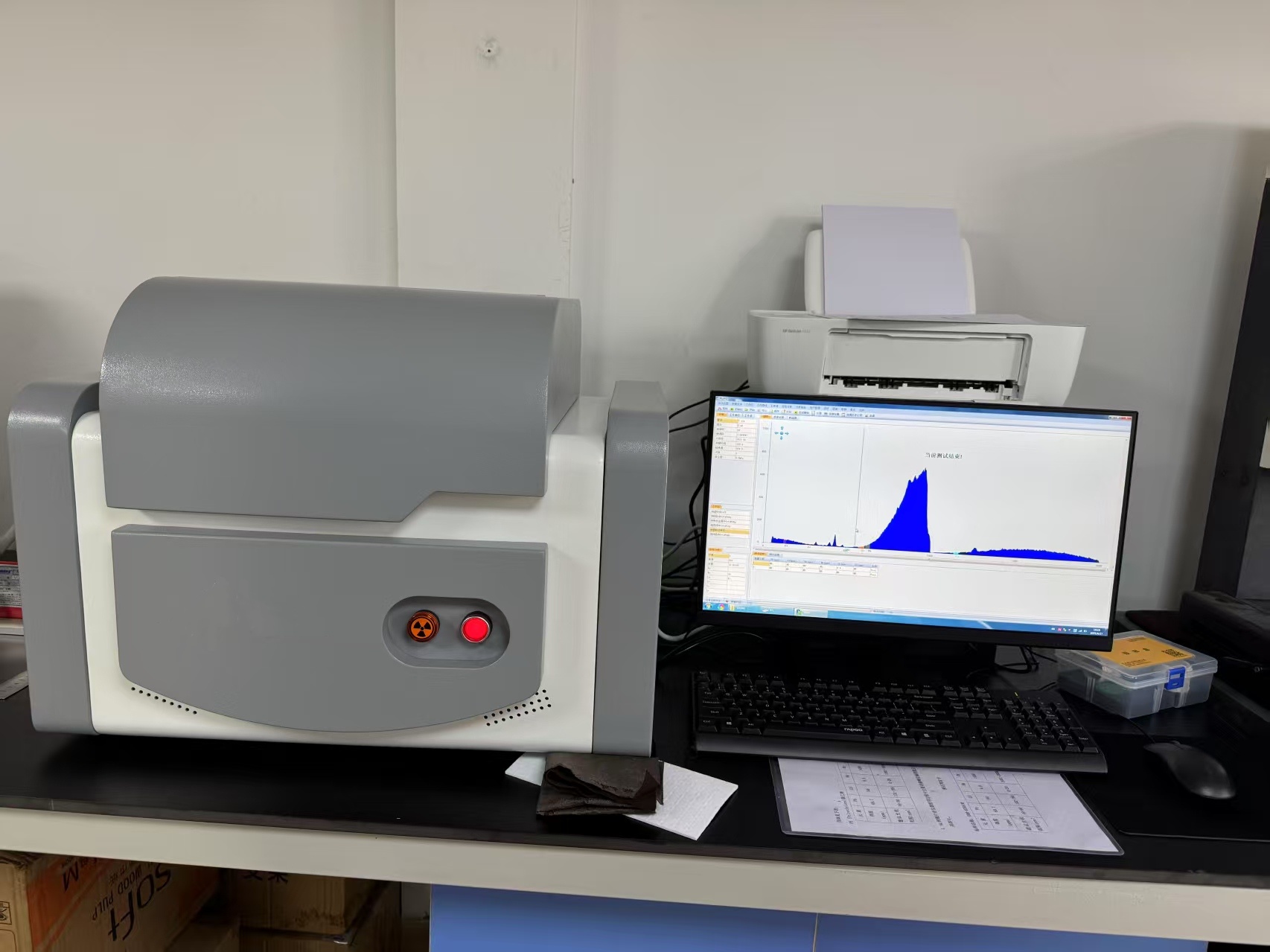

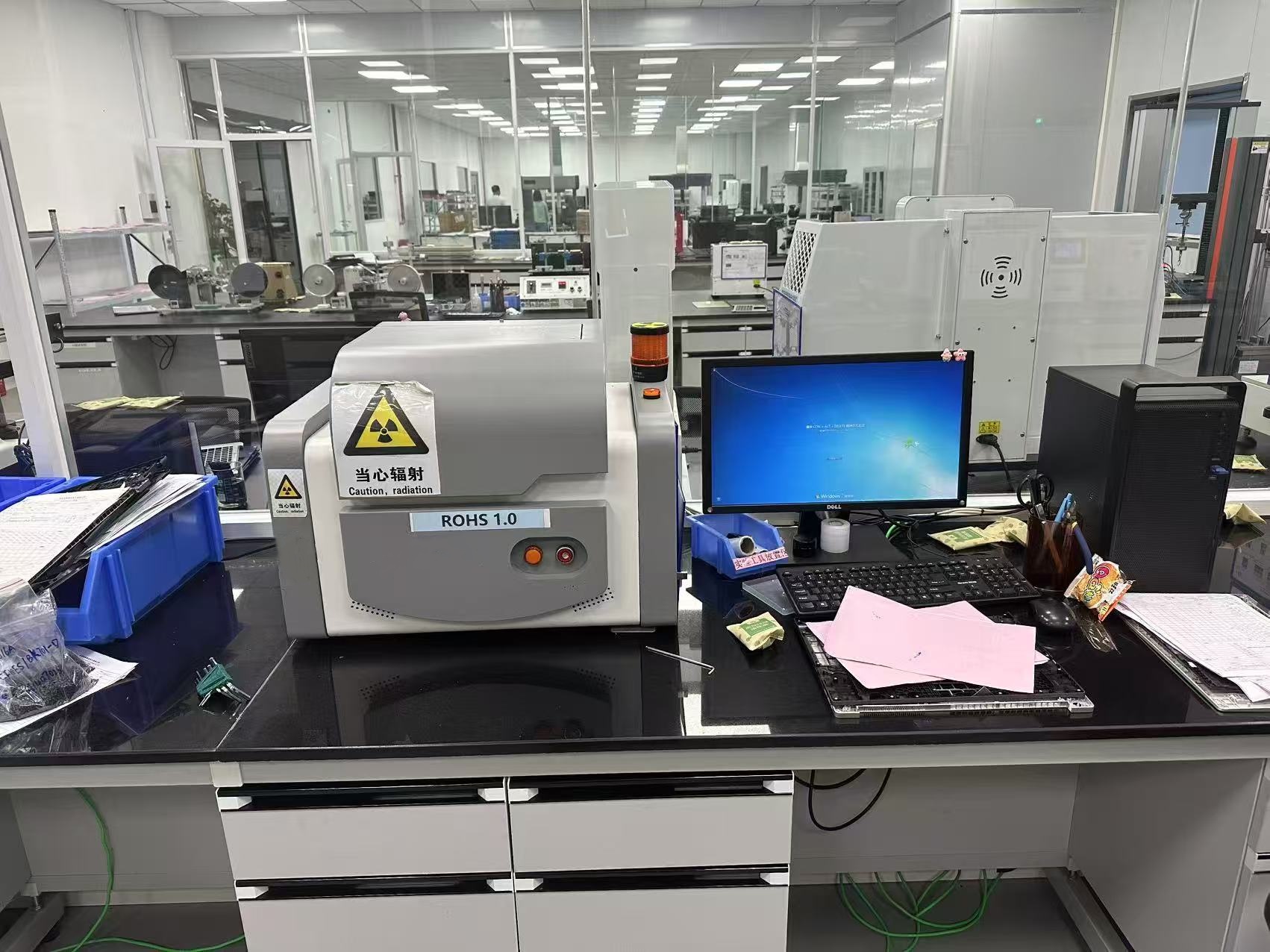

Product name: Energy dispersive X-ray fluorescence spectrometer |
|
|
Analysis of principles |
Energy dispersive X-ray fluorescence analysis |
|
analytical element |
The scope of elemental analysis is S-U for any element Quantitative test of ROHS and halogenated lead (Pb), mercury (Hg), cadmium (Cd), chromium (Cr), polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE) for total bromine, bromine (Br), chlorine (Cl), antimony (Sb), arsenic (AS) and tin (Sn) in halogen. |
|
going |
Working temperature: 18-22℃ |
|
Relative humidity: 40%-60% |
|
|
Power supply: AC 220 V±10%, 50/60 Hz |
|
|
Test conditions: atmospheric environment |
|
|
qualification |
Detection limit: Pb/Cd/ Cr/Hg/Br/≤2ppm Cl≤50ppm |
|
Test sample time: 60-300 seconds adjustable |
|
|
Test content range: 1ppm-99.99% |
|
|
Sample shape: any size, any irregular shape |
|
|
Sample type: plastic/metal/film/powder/liquid |
|
|
X ray tube ： Tube voltage /0~50 kV tube current/max 1~1000 μA, maximum power: 50 W, filament voltage: 2.0V, filament current: 1.7 A, ray extraction Angle: 12° target material: tungsten target, beryllium window thickness: 400um, overtemperature overload protection, automatic standby state when not working to extend service life. |
|
|
Aperture diameter: collimator 5mm /2mm /1mm /0.5mm |
|
|
prober ： The Amptek Si-PIN detector in the United States has the best resolution of 149±5eV. |
|
|
American Spellman high voltage power supply: Input voltage: DC +24V±10%, input current: 4.25A (maximum), output voltage: 0-50KV & 1mA, maximum power: 50W, voltage regulation rate: 0.01% (from no load to full load) Current adjustment rate: 0.01% (from no load to full load), ripple voltage: under the condition of rated output voltage, the peak value of ripple voltage is 0.25% of the highest output voltage, 8 hour stability: less than or equal to 0.05%. |
|
|
Heat dissipation system: There are multiple heat dissipation holes in front and back of the body, and there are three fans for air cooling inside the body. The X-ray tube is coated with high temperature heat reduction resin, and the heat sink is wrapped, and another fan blows wind to cool it down. |
|
|
Radiation shielding system: The radiation protection design combines software and hardware, with three layers of protection: special radiation treatment for the X-ray tube, double-layer lead wrapping for the sample cover, and radiation warning in the software (when a staff member accidentally opens the sample chamber while the instrument is operating, the system automatically shuts down all power to ensure the safety of the operator). The device has obtained the national radiation safety permit, and the radiation dose is below the national standard. |
|
|
Filter: eight new filter automatic selection setting |
|
|
Sample monitoring system: The 30x 5 million pixel color CCD camera can observe the state of samples in real time in the software test interface, and adjust the position of samples slightly before placing them for testing. After the sample testing is completed, the pattern is clearly presented in the test report. |
|
|
Software systems: Quantitative analysis and calculation are performed using the theoretical Alpha coefficient method (NBS-GSC method), integrated FP method, and empirical coefficient method to accurately test RoHS halogen-free elements (Pb, Cd, Hg, Br, Cr, Cl). The system features a user-friendly interface in multiple languages, with a one-click design that simplifies operations. It can generate various customized reports and automatically export them in PDF, EXCEL, and other formats. |
|
|
Rated power: 0.35kW |
|
|
Weight: 50Kg |
|
|
External dimensions: 550 (W) x 450 (D) x 450 (H) mm |
|
|
Sample chamber size: 350 (W) x 300 (D) x 150 (H) mm. |
|
|
standard layout |
Amptek Si-PIN detector set: |
|
One tungsten target special radiation protection treatment side window type X-ray tube |
|
|
One high voltage power supply from Spellman, USA |
|
|
Fully enclosed lead plate double sample chamber |
|
|
One high precision CCD camera |
|
|
A set of software including Alpha coefficient method (NBS-GSC method), integrated FP method and empirical coefficient method |
|
|
One sample box, one test sample cup and one roll of test plastic film |
|
|
One EU standard sample of UME60K and one silver correction standard sample |
|
|
computer configuration |
Operating system: WINDOW |
|
Internal storage: 8G |
|
|
Display: 21.5" SVGA |
|
|
Hard disk: 480T (solid state drive) |
|
|
CPU ：I5-4590 |
|
|
Printer: HP color inkjet printer |
|
|
Product after-sales Service guarantee |
1. 12 months warranty for the whole machine, free software upgrade for life; 2. If the EU adjusts the ROHS test items, the analysis items will be upgraded free of charge; 3. Repair time: provide technical support by phone within 2 hours after receiving the repair call, and arrive at the user's site within 24 hours if the problem cannot be solved; 4. Regular follow-up visits to users, with no less than 1 phone visit per month. 5. If any (non-manual) fault occurs during the warranty period, our company shall bear the cost; 6. If the hardware needs to be replaced after the warranty period expires (not caused by human), our company will replace the corresponding parts at a preferential price. |
